Project Watts, Upgraded.
The WS-12 V2 is a 1000W powered subwoofer for the studio and the stage. With frequency extension down to 23 Hz and 123 dB max SPL, it provides authoritative low end in any setting. Now in its second iteration, the WS-12 V2 adds serious electronic improvements to improve output signal-to-noise ratio, among other upgrades.
Starting at $899
Performance
Power. Depth. Adaptability.
The WS-12 V2 Subwoofer is the most powerful studio subwoofer available under $1000. It is made to be used with any near- or mid-field studio monitors, as well as with small portable PA systems in a live setting.
One of the key design specifications for the WS-12 V2 is that it be capable of providing bass management in a 5.1 system where all of the full-range speakers are Kali IN-8s. As such, the WS-12 V2 is powered by a 1000W power amplifier mated to a high-excursion 12-Inch driver.

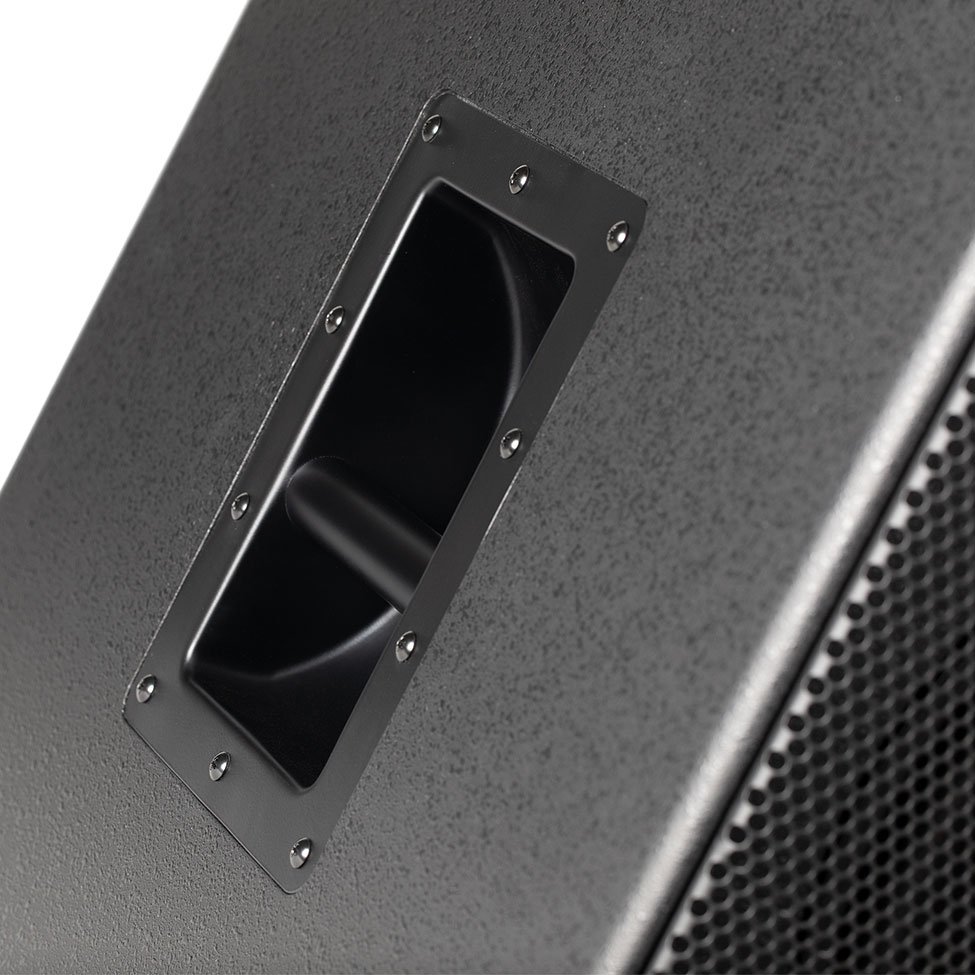

This much power also makes the WS-12 V2 a capable live subwoofer. Its enclosure is 18mm plywood and it has handles for easy carrying. Kali’s team made sure that it will fit in small passenger cars, so you can take it with you even when you’re calling a ride to get to your gig!
All this power is controlled by a robust, user-friendly DSP section that let you dial in the exact settings you need for your system. Whether you’re using it with a pair of LP-6s, as bass management in a 5.1 system, or on stage with a PA, it’s easy to configure the WS-12 V2 to get exactly what you need.
WS-12 V2:
1000W
Class D Power
23 Hz
Lower Frequency Response
23 Hz
Lower Freq. Response
18mm
Wooden Enclosure
123 dB
Max SPL
DSP Features
Selectable Crossovers
The WS-12 V2 has selectable crossovers every 5 Hz between 50 Hz and 110 Hz.Gain Adjustment
6 dB steps allow easy adjustment between free space, against walls, or in corners.Polarity
Reverse the sub’s polarity for better phase response in your system.Footswitch
Bypass the sub at the press of a button to listen to your mix on full-range speakers. The sub turns off, and output signal is no longer high passed when bypassed.For use with:
Specifications
| Powered: | Yes |
| Amp Class: | D |
| Continuous Power: | 500W |
| Peak Power: | 1000W |
| Driver Complement: | 12-Inch High Excursion Woofer |
| Voice Coil Size: | 2.5 Inches |
| Freq Response: (-10dB, anechoic): | 23Hz - 250 Hz |
| Freq Range: (+/-3dB, anechoic): | 30Hz - 180 Hz |
| Recommended Listening Distance: | Up to 5 meters |
| Max SPL: (Peak at 1M) | 123 dB |
| System THD: (90dB SPL at 1M) | <2% |
| Unbalanced Inputs: | Stereo RCA (-10dBV) |
| Balanced Inputs: | Stereo XLR/TRS Combi Jack (+4dBu) |
| Balanced Outputs: | XLR |
| Pass-through signal-to-noise ratio: | >115 dB |
| Other Inputs/Outputs: | 1/4-Inch Footswitch for Sub Bypass |
| Enclosure: | Front Ported |
| Pole Cup: | M20 Threaded |
| Height: | 19.2 Inches (48.8cm) |
| Width: | 17.2 Inches (43.7cm) |
| Depth: | 20.5 Inches (52.1cm) |
| Weight: | 58 lbs (27 kg) |
